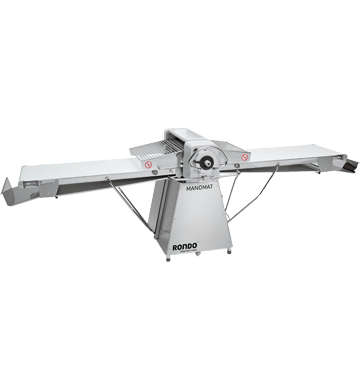

RONDO Industrial Dough Sheeter Manomat

Manomat/Automat – the hard workers

With the high-performance mechanical dough sheeters Manomat and Automat, you process large quantities of dough, also with multiple shifts. The Automat has an automatic roller adjustment that always guarantees the same rolling steps. On the Manomat, these are set manually.

Description

Industrial Dough Sheeter – Large Size

Model: Manomat 2000

Make: Rondo Burgdorf, Switzerland



A-Frame Model Consisting of:

·        W 1760mm x D 1215mm x H 2300mm (folded dimensions)

·        Electrical requirements: 415V, 3P+E, 50Hz, 0.9kW

·        Floor mounted (“A frame” style) manual pastry sheeter

·        Substructure Stainless Steel

·        Side push button control

·        Manual roller gap reduction

·        Fold up tables

·        Roller gap 0.5- 45mm

·        Roller width 660mm, Table width 650mm

·        Conveyor belt width 640mm

·        Overall conveyor length 3320mm

·        Speed of discharge conveyor 60cm/sec

·        Recommended dough block weight 6 – 12.5kg

·        Conveyer Belt: White Cotton

·        With Flour Catch Pan

·        Curling Attachment: WITHOUT

·        With Flour Container Plastic
